图片两级缓存解析

图片加载是客户端开发中重要的一个模块，如今也有很多优秀的开源库(UIL、Picasso、Glide、Fresco)。大部分图片库都采用了Memory缓存和Disk缓存。

1. Memory缓存（LruCache）

最直接的方法就是看源码

1.1 成员变量

 private final LinkedHashMap<K, V> map;

/** Size of this cache in units. Not necessarily the number of elements. */
private int size;
private int maxSize;

map用于存放缓存的Bitmap
size当前缓存的总大小
maxSize是缓存允许的最大大小，由构造函数赋值。

1.2 重要方法

1.2.1 添加数据

 public final V put(K key, V value) {

	V previous;
	synchronized (this) {
		putCount++;
		size += safeSizeOf(key, value);
		previous = map.put(key, value);
		if (previous != null) {
			size -= safeSizeOf(key, previous);
		}
	}

	if (previous != null) {
		entryRemoved(false, key, previous, value);
	}

	trimToSize(maxSize);
	return previous;
}

(1) 首先计算存入的数据大小。
(2) 添加数据的大小。
(3) 保存到map中。
(4) 如果之前key保存的数据存在减去之前数据占用的大小。
(5) 检查缓存。

1.2.2 检查缓存

private void trimToSize(int maxSize) {
	while (true) {
		K key;
		V value;
		synchronized (this) {
			if (size < 0 || (map.isEmpty() && size != 0)) {
				throw new IllegalStateException(getClass().getName()
						+ ".sizeOf() is reporting inconsistent results!");
			}

			if (size <= maxSize) {
				break;
			}

			Map.Entry<K, V> toEvict = map.entrySet().iterator().next();

			if (toEvict == null) {
				break;
			}

			key = toEvict.getKey();
			value = toEvict.getValue();
			map.remove(key);
			size -= safeSizeOf(key, value);
			evictionCount++;
		}

		entryRemoved(true, key, value, null);
	}
}

循环判断当前缓存大小是否超过最大值，如果超过清除使用。 LinkedHashMap提供特殊的构造方法来创建链接哈希映射，该哈希映射的迭代顺序就是最后访问其条目的顺序，从近期访问最少到近期访问最多的顺序（访问顺序）。这种映射很适合构建 LRU 缓存， 这里不做深入解释。所以第一条数据是很久没使用的数据，即为删除的数据。将缓存大小减去删除数据的大小。

1.2.3 获取数据

  public final V get(K key) {
      if (key == null) {
          throw new NullPointerException("key == null");
      }

      V mapValue;
      synchronized (this) {
          mapValue = map.get(key);
          if (mapValue != null) {
              hitCount++;
              return mapValue;
          }
          missCount++;
      }

....
  }

2. Disk缓存（DiskLruCache）

*2.1 成员变量 *

//保存缓存文件的文件夹
 private final File directory;
 //保存缓存文件系统信息的文件。
private final File journalFile;
private final File journalFileTmp;
private final int appVersion;
private final long maxSize;
private final int valueCount;
private long size = 0;
private Writer journalWriter;
//用于保存缓存文件信息，初始化由journalFile解析赋值。
private final LinkedHashMap<String, Entry> lruEntries
	= new LinkedHashMap<String, Entry>(0, 0.75f, true);

*2.2 重要方法 *

public static DiskLruCache open(File directory, int appVersion, int valueCount, long maxSize)
		throws IOException {

	DiskLruCache cache = new DiskLruCache(directory, appVersion, valueCount, maxSize);
	if (cache.journalFile.exists()) {
		try {
			cache.readJournal();
			cache.processJournal();
			cache.journalWriter = new BufferedWriter(new FileWriter(cache.journalFile, true),
					IO_BUFFER_SIZE);
			return cache;
		} catch (IOException journalIsCorrupt) {
//                System.logW("DiskLruCache " + directory + " is corrupt: "
//                        + journalIsCorrupt.getMessage() + ", removing");
			cache.delete();
		}
	}
	directory.mkdirs();
	cache = new DiskLruCache(directory, appVersion, valueCount, maxSize);
	cache.rebuildJournal();
	return cache;
}

private DiskLruCache(File directory, int appVersion, int valueCount, long maxSize) {
	this.directory = directory;
	this.appVersion = appVersion;
	this.journalFile = new File(directory, JOURNAL_FILE);
	this.journalFileTmp = new File(directory, JOURNAL_FILE_TMP);
	this.valueCount = valueCount;
	this.maxSize = maxSize;
}

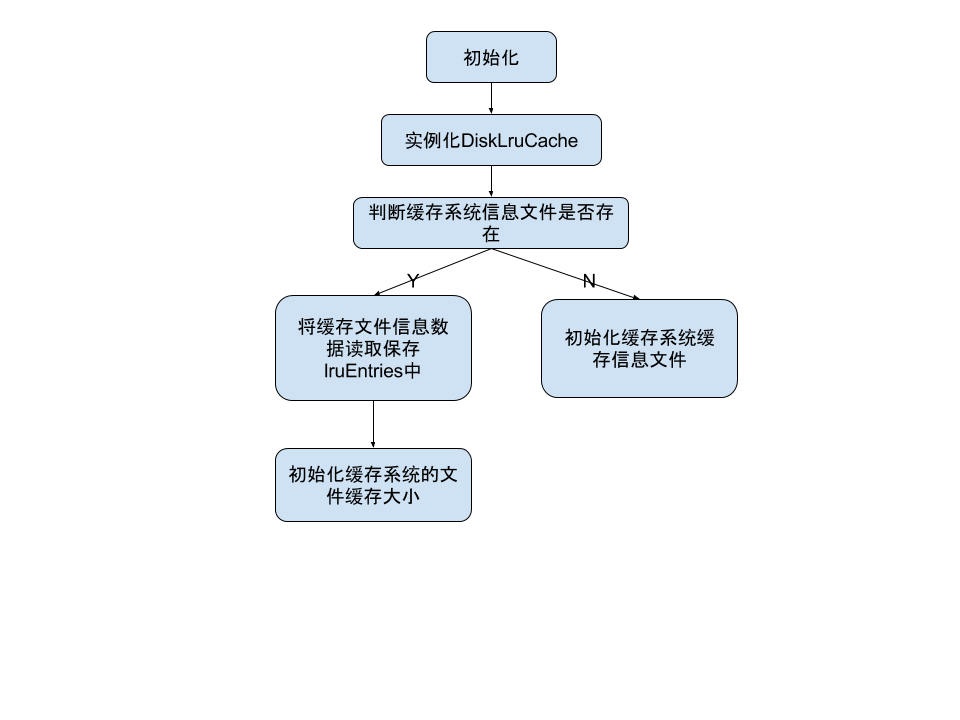

(1)创建DiskLruCache实例对象。
(2)判断文件系统中是否存在缓存系统信息的文件。
(3)根据不同的情况分别初始化

---

首先了解 ： DIRTY这个字样都不代表着什么好事情，意味着这是一条脏数据。没错，每当我们调用一次DiskLruCache的edit()方法时，都会向journal文件中写入一条DIRTY记录，表示我们正准备写入一条缓存数据，但不知结果如何。然后调用commit()方法表示写入缓存成功，这时会向journal中写入一条CLEAN记录，意味着这条“脏”数据被“洗干净了”，调用abort()方法表示写入缓存失败，这时会向journal中写入一条REMOVE记录。也就是说，每一行DIRTY的key，后面都应该有一行对应的CLEAN或者REMOVE的记录，否则这条数据就是“脏”的，会被自动删除掉。

private synchronized Editor edit(String key, long expectedSequenceNumber) throws IOException {
	checkNotClosed();
	validateKey(key);
	Entry entry = lruEntries.get(key);
	if (expectedSequenceNumber != ANY_SEQUENCE_NUMBER
			&& (entry == null || entry.sequenceNumber != expectedSequenceNumber)) {
		return null; // snapshot is stale
	}
	if (entry == null) {
		entry = new Entry(key);
		lruEntries.put(key, entry);
	} else if (entry.currentEditor != null) {
		return null; // another edit is in progress
	}

	Editor editor = new Editor(entry);
	entry.currentEditor = editor;

	// flush the journal before creating files to prevent file leaks
	journalWriter.write(DIRTY + ' ' + key + '\n');
	journalWriter.flush();
	return editor;
}

从缓存系统获取编辑器，然后想缓存信息文件中添加记录数据。

---

然后从Edit中获取OutputStream，从而网文件系统中写文件。

 public OutputStream newOutputStream(int index) throws IOException {
	synchronized (DiskLruCache.this) {
		if (entry.currentEditor != this) {
			throw new IllegalStateException();
		}
		return new FaultHidingOutputStream(new FileOutputStream(entry.getDirtyFile(index)));
	}
}

当文件写完以后成功则调用Edit.commit(),失败则调用Edit.abort()

  public void commit() throws IOException {
	if (hasErrors) {
		completeEdit(this, false);
		remove(entry.key); // the previous entry is stale
	} else {
		completeEdit(this, true);
	}
}

/**
 * Aborts this edit. This releases the edit lock so another edit may be
 * started on the same key.
 */
public void abort() throws IOException {
	completeEdit(this, false);
}

---

继续看最重要的保存数据方法

private synchronized void completeEdit(Editor editor, boolean success) throws IOException {
       Entry entry = editor.entry;

	....

       for (int i = 0; i < valueCount; i++) {
           File dirty = entry.getDirtyFile(i);
           if (success) {
               if (dirty.exists()) {
                   File clean = entry.getCleanFile(i);
                   dirty.renameTo(clean);
                   long oldLength = entry.lengths[i];
                   long newLength = clean.length();
                   entry.lengths[i] = newLength;
                   size = size - oldLength + newLength;
               }
           } else {
               deleteIfExists(dirty);
           }
       }

       redundantOpCount++;
       entry.currentEditor = null;
       if (entry.readable | success) {
           entry.readable = true;
           journalWriter.write(CLEAN + ' ' + entry.key + entry.getLengths() + '\n');
           if (success) {
               entry.sequenceNumber = nextSequenceNumber++;
           }
       } else {
           lruEntries.remove(entry.key);
           journalWriter.write(REMOVE + ' ' + entry.key + '\n');
       }

       if (size > maxSize || journalRebuildRequired()) {
           executorService.submit(cleanupCallable);
       }
   }

如果成功将DirtyFile转化为CleanFile，然后添加文件描述。
如果失败则删除DirtyFile，然后添加文件描述。
最后检查缓存大小，清理缓存系统。

---

public synchronized Snapshot get(String key) throws IOException {
	checkNotClosed();
	validateKey(key);
	Entry entry = lruEntries.get(key);
	if (entry == null) {
		return null;
	}

	if (!entry.readable) {
		return null;
	}

	InputStream[] ins = new InputStream[valueCount];
	try {
		for (int i = 0; i < valueCount; i++) {
			ins[i] = new FileInputStream(entry.getCleanFile(i));
		}
	} catch (FileNotFoundException e) {
		// a file must have been deleted manually!
		return null;
	}

	redundantOpCount++;
	journalWriter.append(READ + ' ' + key + '\n');
	if (journalRebuildRequired()) {
		executorService.submit(cleanupCallable);
	}

	return new Snapshot(key, entry.sequenceNumber, ins);
}

每当我们调用get()方法去读取一条缓存数据时，就会向journal文件中写入一条READ记录。因为每次读取都会向journal文件中写入一条READ记录，所以也需要检查缓存。

---

private final Callable<Void> cleanupCallable = new Callable<Void>() {
	@Override public Void call() throws Exception {
		synchronized (DiskLruCache.this) {
			if (journalWriter == null) {
				return null; // closed
			}
			trimToSize();
			if (journalRebuildRequired()) {
				rebuildJournal();
				redundantOpCount = 0;
			}
		}
		return null;
	}
};

缓存清理任务。首先清理缓存文件，然后重新生成journal文件。
