okhttp详解1

okhttp是square推出的网络开源库，支持http语义缓存，支持spdy和http2.0协议。看源码的目的主要是了解http协议实现，最重要是了解okhhtp的优劣，http2.0/spdy协议多路复用技术，多路复用技术与keep—alive的区别。

接下来首先分析主体流程，直接看代码 （此版本是okhttp2.6） ， okhttp中包含okio库，okio是一个增强的io库， sink简单理解为OutputStream，source理解为InputStreame。

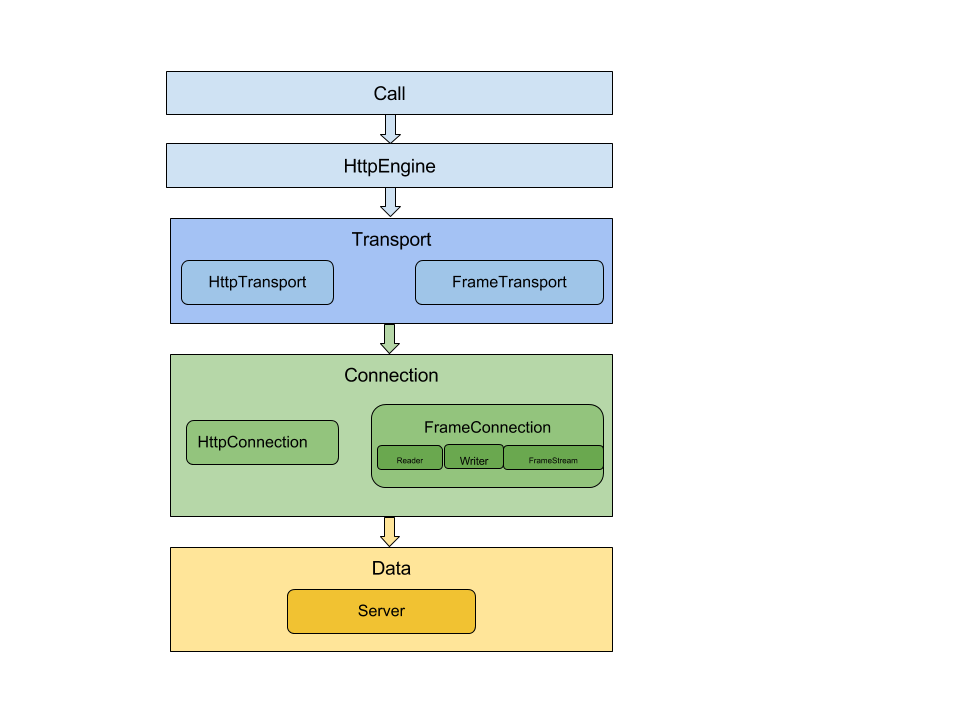

一、总体设计图

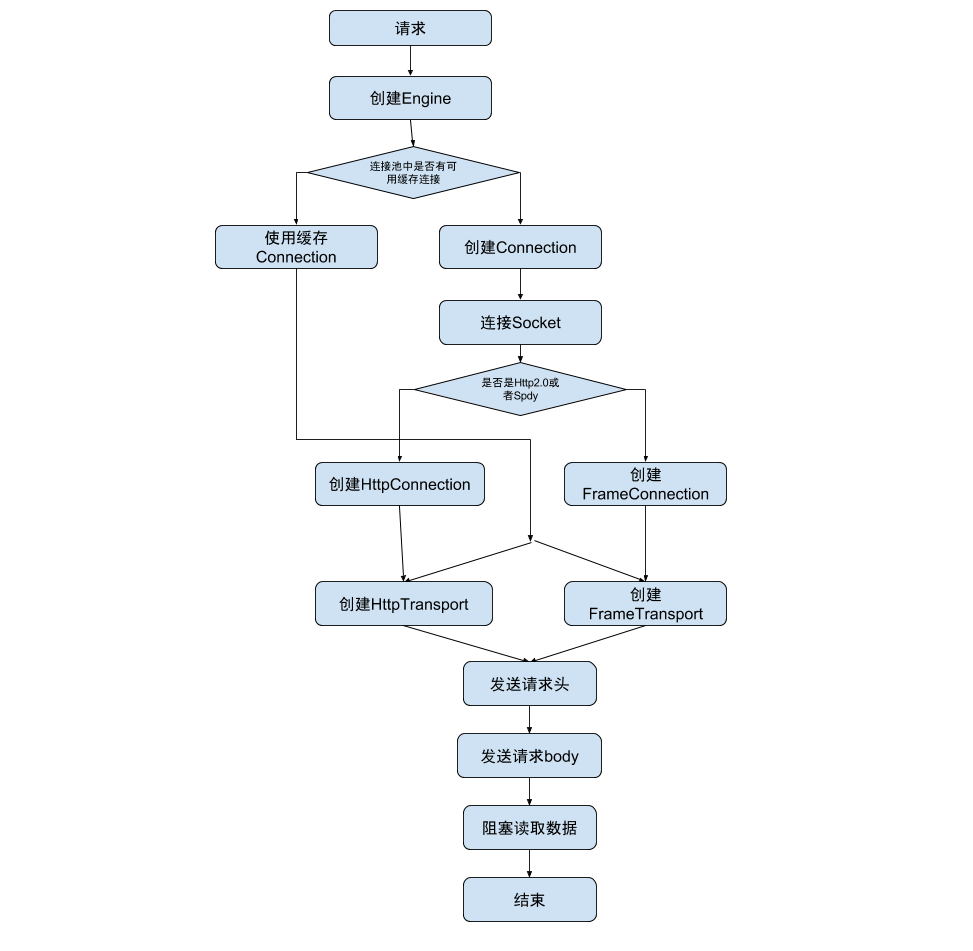

二、流程图

三、代码

1.Call.java

public Response execute() throws IOException {
  synchronized (this) {
    if (executed) throw new IllegalStateException("Already Executed");
    executed = true;
  }
  try {
    client.getDispatcher().executed(this);
    Response result = getResponseWithInterceptorChain(false);
    if (result == null) throw new IOException("Canceled");
    return result;
  } finally {
    client.getDispatcher().finished(this);
  }
}

主要将请求存放到Dispatcher中，同步请求应该可以忽略这个部分。

2.ApplicationInterceptorChain.java

@Override
	public Response proceed(Request request) throws IOException {
      // If there's another interceptor in the chain, call that.
      if (index < client.interceptors().size()) {
        Interceptor.Chain chain = new ApplicationInterceptorChain(index + 1, request, forWebSocket);
        Interceptor interceptor = client.interceptors().get(index);
        Response interceptedResponse = interceptor.intercept(chain);

        if (interceptedResponse == null) {
          throw new NullPointerException("application interceptor " + interceptor
              + " returned null");
        }

        return interceptedResponse;
      }

      // No more interceptors. Do HTTP.
      return getResponse(request, forWebSocket);
    }

这里判断是否有拦截器，如果有拦截器则交给拦截器处理，拦截器的作用就是调试（Facebook stetho）。如果没有拦截器则直接处理。

3.Call.java

Response getResponse(Request request, boolean forWebSocket) throws IOException {
   // Copy body metadata to the appropriate request headers.
   RequestBody body = request.body();
   if (body != null) {
     Request.Builder requestBuilder = request.newBuilder();

     MediaType contentType = body.contentType();
     if (contentType != null) {
       requestBuilder.header("Content-Type", contentType.toString());
     }

     long contentLength = body.contentLength();
     if (contentLength != -1) {
       requestBuilder.header("Content-Length", Long.toString(contentLength));
       requestBuilder.removeHeader("Transfer-Encoding");
     } else {
       requestBuilder.header("Transfer-Encoding", "chunked");
       requestBuilder.removeHeader("Content-Length");
     }

     request = requestBuilder.build();
   }

   // Create the initial HTTP engine. Retries and redirects need new engine for each attempt.
   engine = new HttpEngine(client, request, false, false, forWebSocket, null, null, null, null);

   int followUpCount = 0;
   while (true) {
     if (canceled) {
       engine.releaseConnection();
       throw new IOException("Canceled");
     }

     try {
       engine.sendRequest();
       engine.readResponse();
     } catch (RequestException e) {
       // The attempt to interpret the request failed. Give up.
       throw e.getCause();
     } catch (RouteException e) {
       // The attempt to connect via a route failed. The request will not have been sent.
       HttpEngine retryEngine = engine.recover(e);
       if (retryEngine != null) {
         engine = retryEngine;
         continue;
       }
       // Give up; recovery is not possible.
       throw e.getLastConnectException();
     } catch (IOException e) {
       // An attempt to communicate with a server failed. The request may have been sent.
       HttpEngine retryEngine = engine.recover(e, null);
       if (retryEngine != null) {
         engine = retryEngine;
         continue;
       }

       // Give up; recovery is not possible.
       throw e;
     }

     Response response = engine.getResponse();
     Request followUp = engine.followUpRequest();

     if (followUp == null) {
       if (!forWebSocket) {
         engine.releaseConnection();
       }
       return response;
     }

     if (++followUpCount > MAX_FOLLOW_UPS) {
       throw new ProtocolException("Too many follow-up requests: " + followUpCount);
     }

     if (!engine.sameConnection(followUp.httpUrl())) {
       engine.releaseConnection();
     }

     Connection connection = engine.close();
     request = followUp;
     engine = new HttpEngine(client, request, false, false, forWebSocket, connection, null, null,
         response);
   }
 }

这里是数据请求的核心流程，包括发送请求、读取数据和异常重试（重试机制不做了解）。
